Edelrid Easy Single Pulley

Edelrid Easy Single Pulley

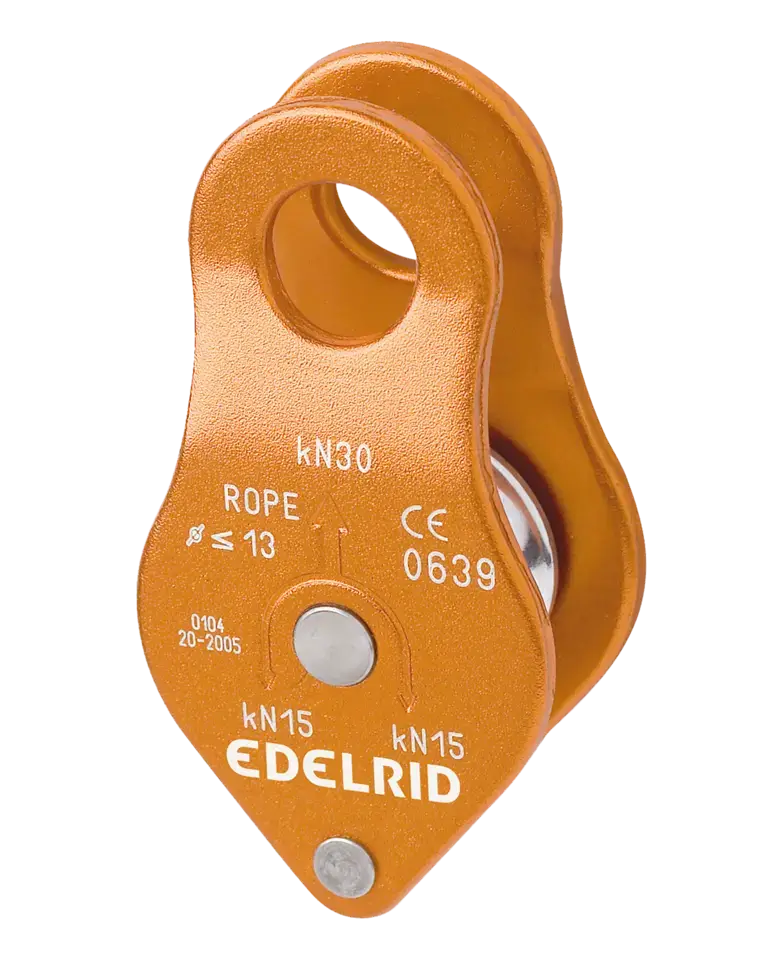

The Edelrid Easy Single Pulley is a small, robust aluminium pulley with fixed side pieces and a minimum breaking strength of 30 kN. It takes rope up to 13.0 mm, which covers most static line and haul cord you are likely to have on a rigging job.

Features and Benefits

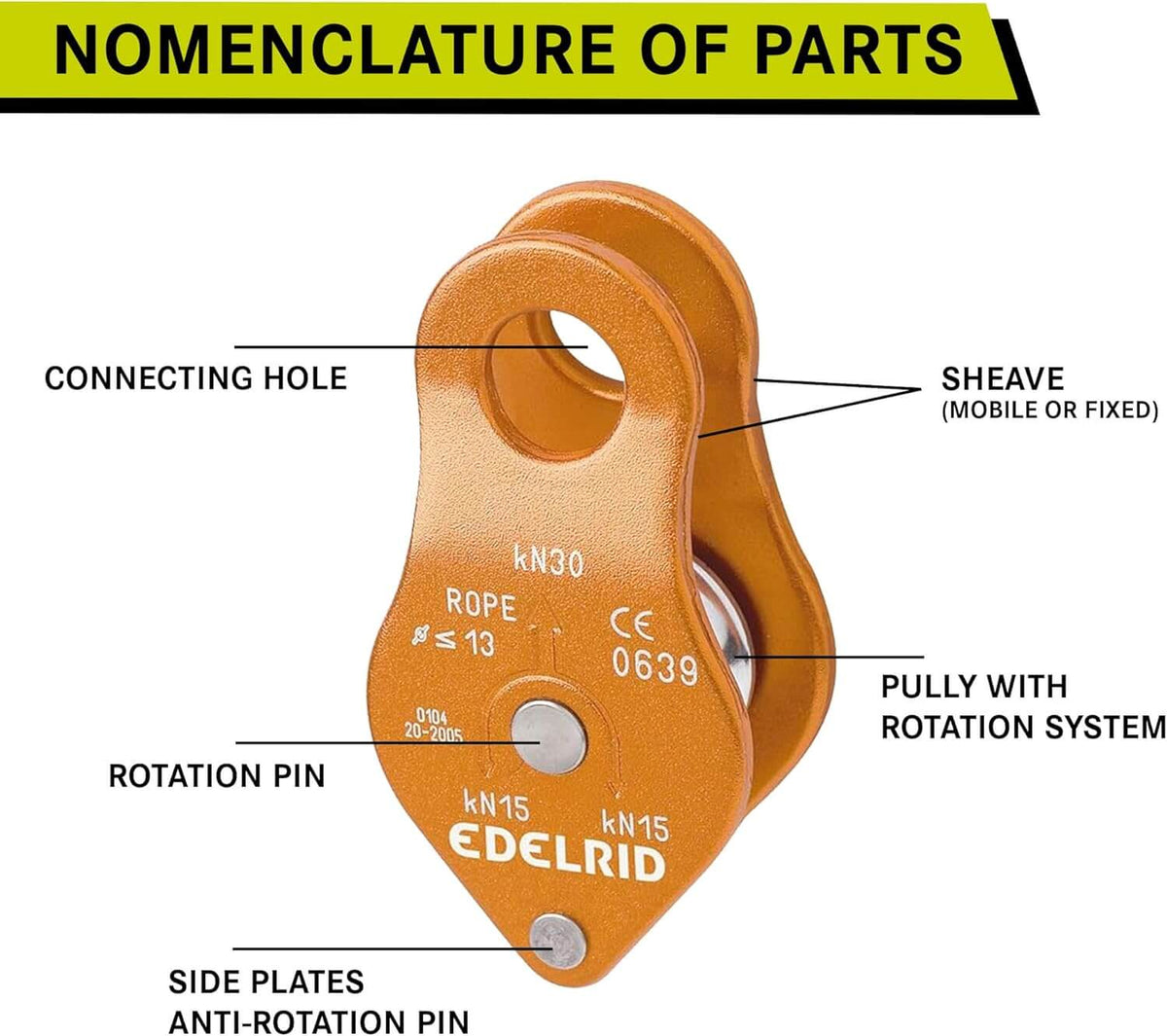

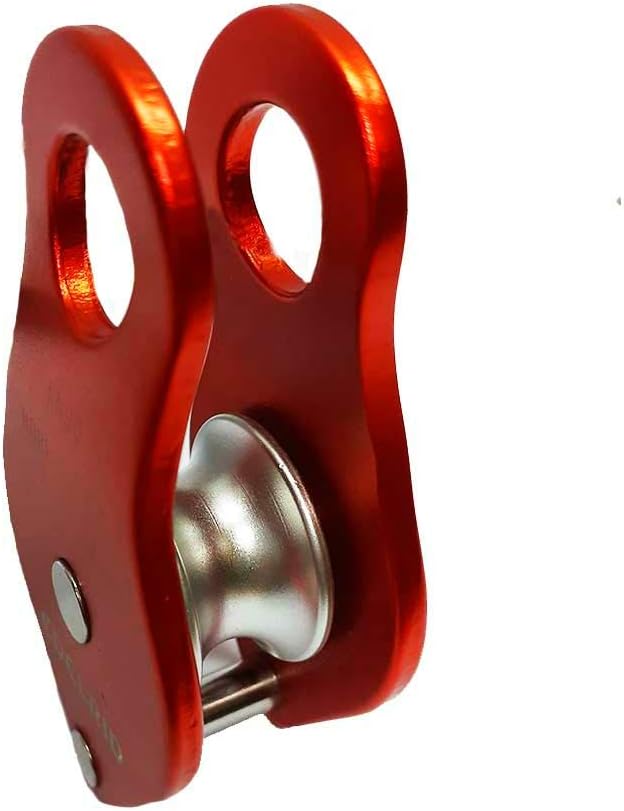

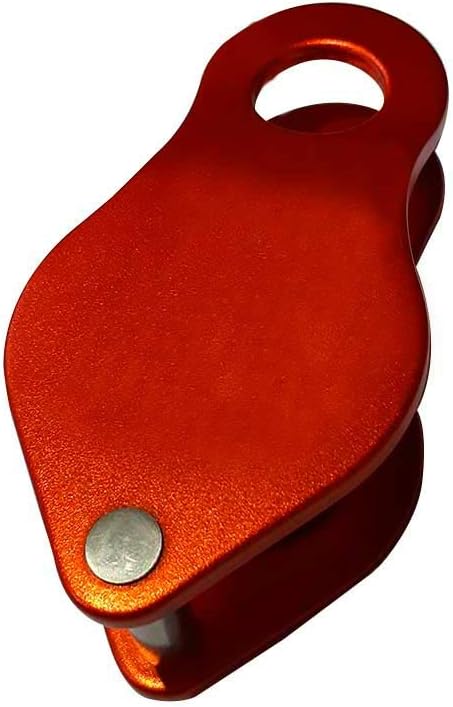

Fixed side pieces are the whole design argument here. There is no moving cheek to swing open, so the pulley cannot be mis-rigged and nothing works loose under cyclic load. You lose the convenience of dropping it onto a mid-rope bight and you gain a piece of hardware with one fewer thing to check.

Additionally, 30 kN of breaking strength is generous for the size. The pulley body measures 85 x 44 x 29 mm, so it takes up almost no room on a harness or in a kit bag while still carrying a serious rating.

Furthermore, the sheave runs 29 mm on the outside and 19 mm on the inside. That is a compact sheave, so the pulley stays small at the cost of some efficiency on long pulls.

Product-Specific Use Cases

This Edelrid Easy Single Pulley belongs in a rigging and hauling kit rather than on a sport rack. It suits simple mechanical advantage systems, tensioning lines, hauling gear up to a platform and any fixed installation where you want a pulley that stays put once it is rigged. Wide rope compatibility means it works with the thicker static lines rope access and rescue teams tend to run.

Technical Specifications

A 30 kN aluminium pulley in an 85 mm body.

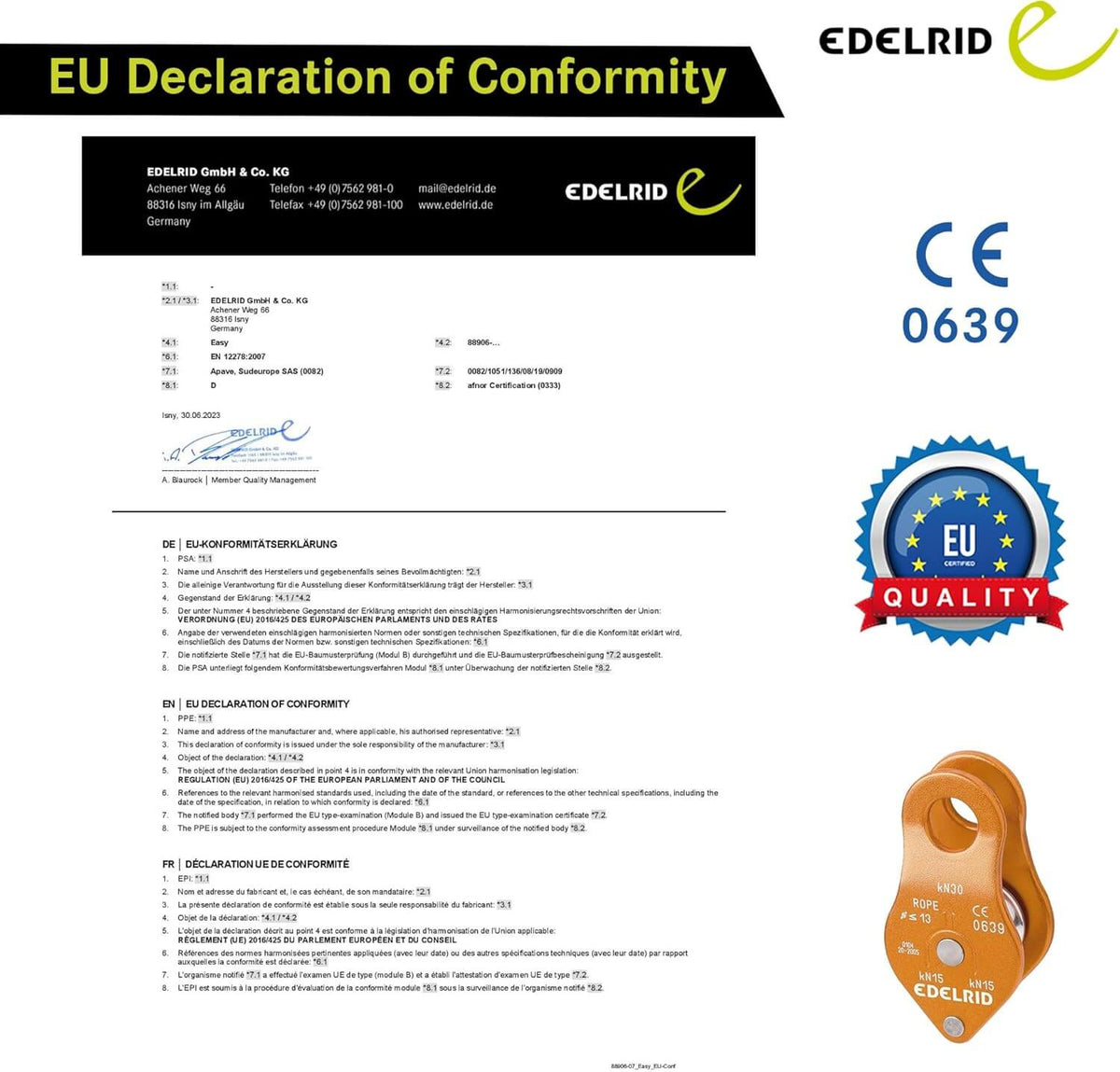

• Certification: EN 12278
• Minimum Breaking Strength: 30 kN
• Material: Aluminium
• Dimensions: 85 x 44 x 29 mm (3.3 x 1.7 x 1.1 in)
• Sheave Diameter: 29 mm outside, 19 mm inside
• Maximum Rope Diameter: 13.0 mm (0.51 in)
