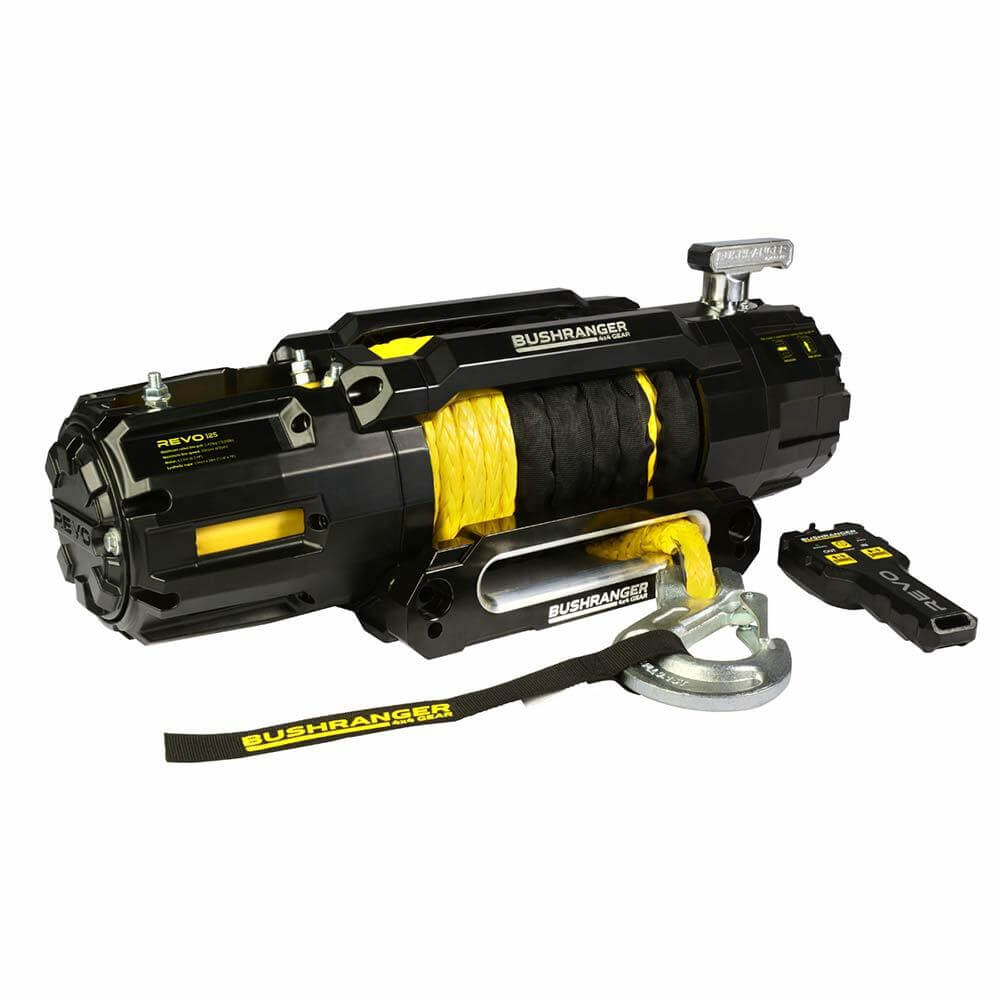

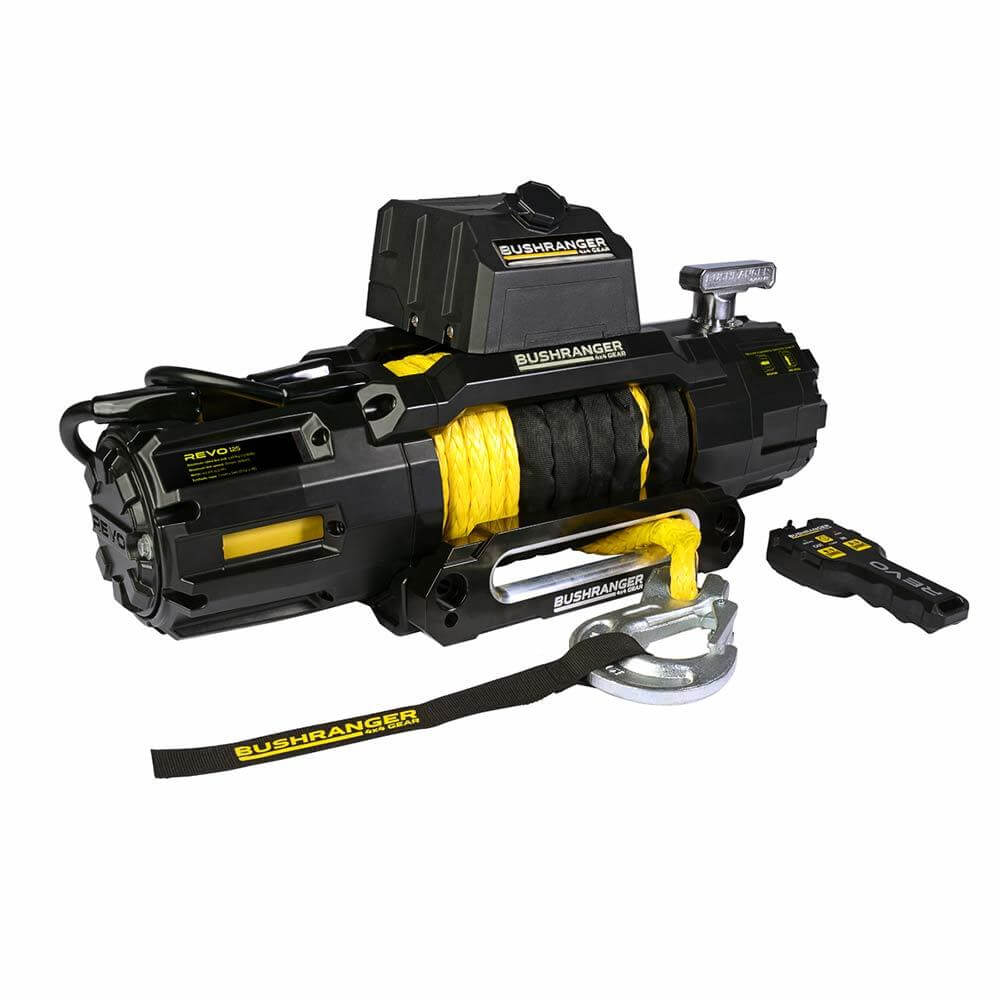

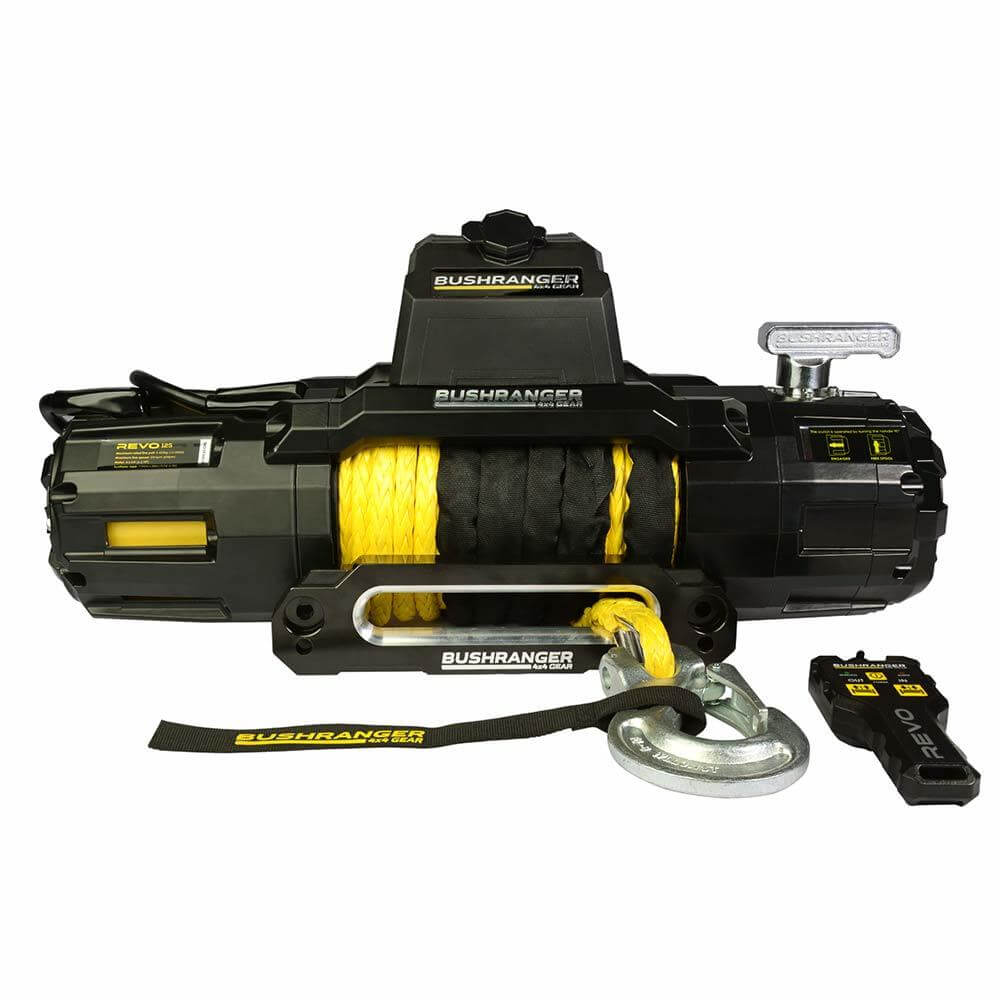

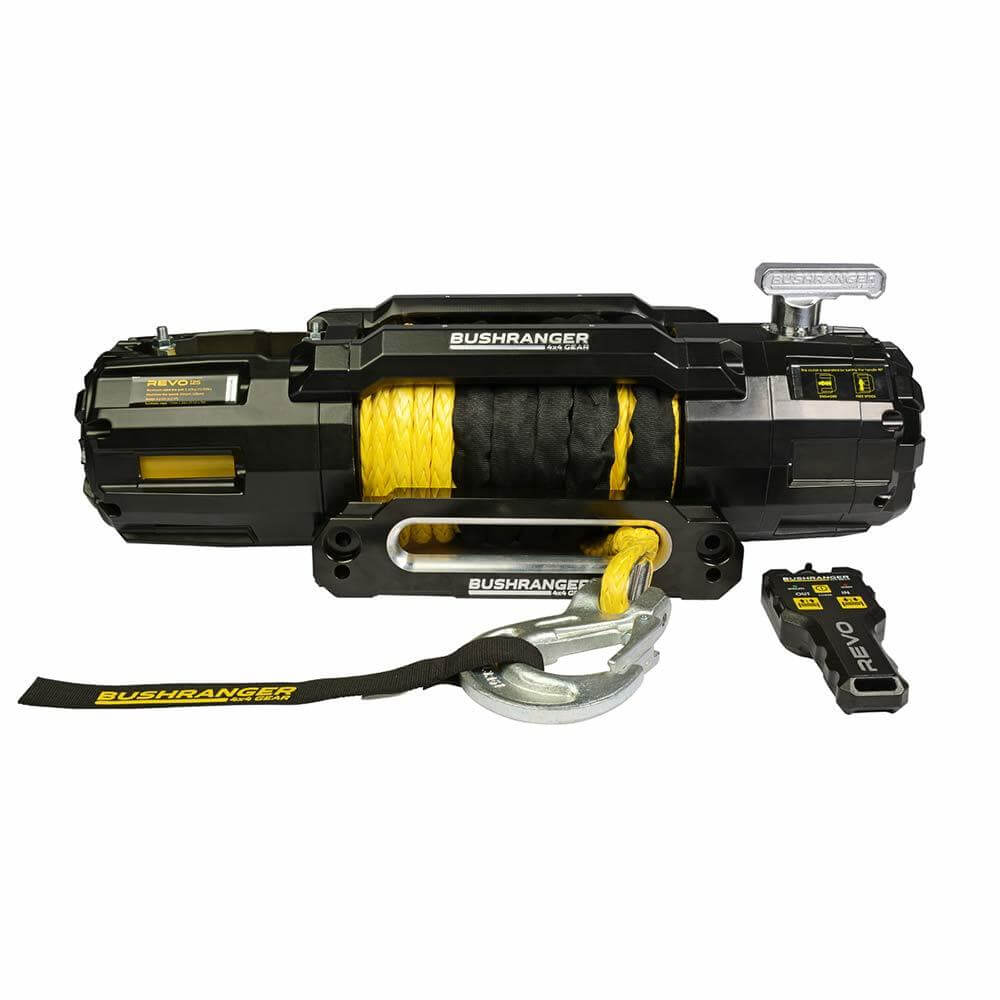

Bushranger 12000 lb Revo Winch Synthetic Rope

Bushranger 12000 lb Revo Winch Synthetic Rope

The Bushranger 12000 lb Revo Winch Synthetic Rope is a 12 V recovery winch for larger 4x4s and loaded overland builds. It pairs a 12,000 lb (5,443 kg) rated line pull with 24 m (78.7 ft) of 11 mm synthetic rope. Fit it before your next run on the rocky tracks of Wadi Bih or a convoy into Liwa.

Features and Benefits

At its core is a series wound 12 V motor rated at 6.2 HP (4.6 kW), driving a four-stage gear train with a 171:1 ratio. The brake is a proportional friction system mounted inside the gearbox rather than in the drum. That keeps brake heat away from the synthetic rope. A spring-loaded, cam-style clutch on a rotating ring gear handles freespooling.

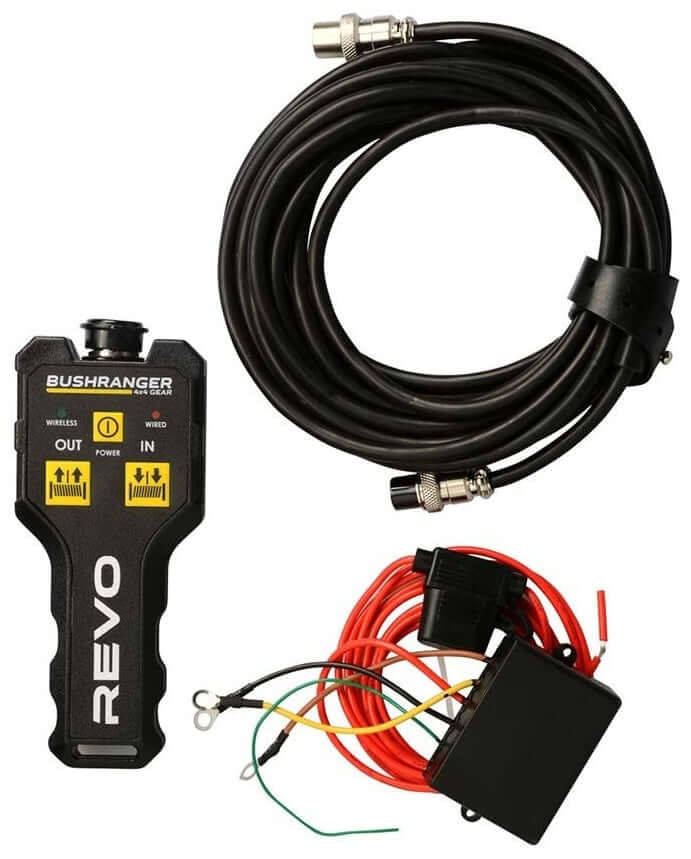

Additionally, the motor, gearbox and drum are sealed to IP67, and the 500 A contactor carries the same rating. The two-function hand controller works wirelessly up to 30 m (98.4 ft) or wired on a 5 m (16.4 ft) lead, so you can stand well clear of the rope during a pull.

Beyond that, fitting is flexible. The gearbox clocks to 16 positions and the motor housing to three. The control box mounts in multiple orientations, with an extra bracket supplied. The two-position aluminium hawse fairlead suits in-line or offset mounting, and the rope ends in a removable clevis hook.

Product-Specific Use Cases

On a self-recovery in a rocky wadi, the wireless range lets you watch the line and the vehicle at the same time. In soft sand, use a ground anchor or a second vehicle as your anchor point. Before you rely on it, make sure your battery meets the 650 CCA minimum.

Technical Specifications

Key figures for planning your bumper fitment and wiring.

• Part Number: RWR120S
• Rated Line Pull (Single Line): 12,000 lb (5,443 kg)
• Motor: Series wound, 12 V, 6.2 HP (4.6 kW)
• Gear Train: 4-stage, 171:1 ratio
• Rope: Synthetic, 11 mm x 24 m (0.43 in x 78.7 ft)
• Bolt Pattern: 254 x 114 mm (10 x 4.5 in)
• Dimensions (Excluding Control Box): 602 x 165 x 216 mm (23.7 x 6.5 x 8.5 in)
• Weight: 35 kg (77.2 lb)
• Recommended Battery: 650 CCA minimum

Why Buy at Trekaline

Order the Bushranger 12000 lb Revo Winch Synthetic Rope from Trekaline and get free shipping on eligible orders with fast dispatch across the UAE. Returns are hassle-free, and our recovery range is chosen for UAE sand, rock and heat.
