Edelrid Master Rig Rigging Plate

Edelrid Master Rig Rigging Plate

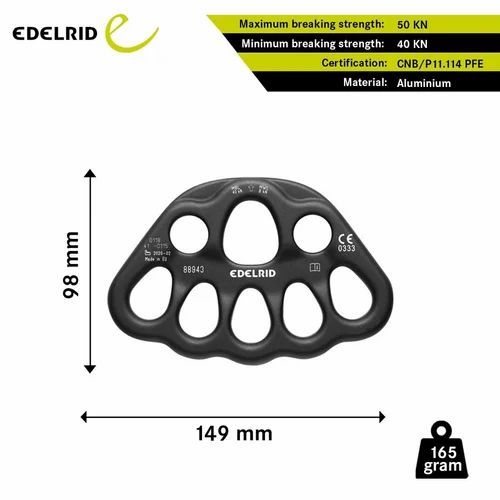

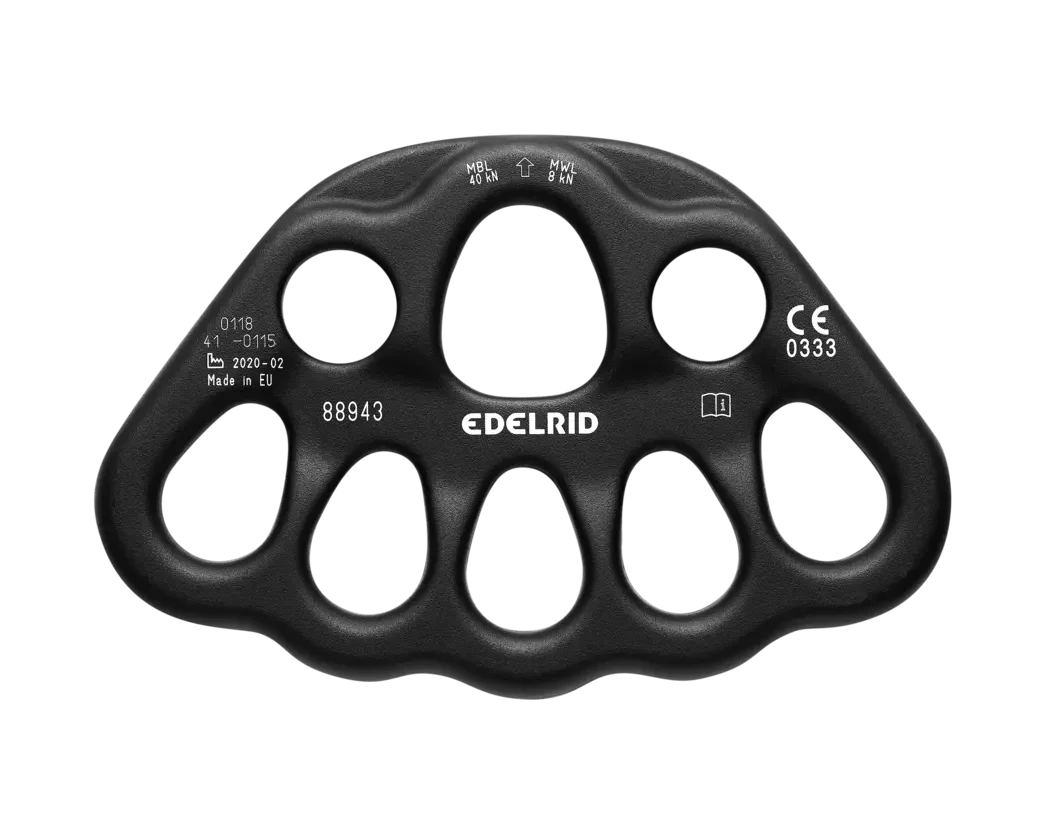

The Edelrid Master Rig Rigging Plate is a large aluminium plate for building complex systems and multiplying anchor points. It holds a minimum breaking strength of 40 kN, measures 98 x 149 mm and is 7 mm thick.

Features and Benefits

A rigging plate solves a problem every complex system runs into. Stacking six carabiners onto one master point produces a mess where nothing loads predictably, while a plate gives each leg its own hole and keeps every connection where you put it.

Moreover, the central opening takes up to three carabiners on its own. That covers the main load path without forcing you onto the smaller holes, which is what you want for the connection carrying most of the system.

Furthermore, this is a wrought construction rather than a plate cut from stock. Edelrid uses that to put material where the stress goes, which is how it reaches 40 kN at a weight you would still carry to a job.

Hole diameter is 20 mm, and 7 mm of thickness gives enough bearing surface that a loaded carabiner does not dig into an edge. It carries CNB/P 11.114 PfE approval.

Product-Specific Use Cases

This Edelrid Master Rig Rigging Plate hardware for technical rescue, rope access and high ropes installations. Use it to build a master point that several legs of a system connect to, to run a haul and a belay from the same anchor without them fouling each other, and to organise directionals and redirects. It also earns its place at a training rig, where a visible, tidy system is part of the teaching.

Technical Specifications

A 40 kN aluminium plate 7 mm thick.

• Certification: CNB/P 11.114 PfE
• Minimum Breaking Strength: 40 kN
• Material: Aluminium
• Dimensions: 98 x 149 x 7 mm (3.9 x 5.9 x 0.3 in)
• Hole Diameter: 20 mm (0.8 in)
• Central Opening: Takes up to three carabiners
• Construction: Wrought
