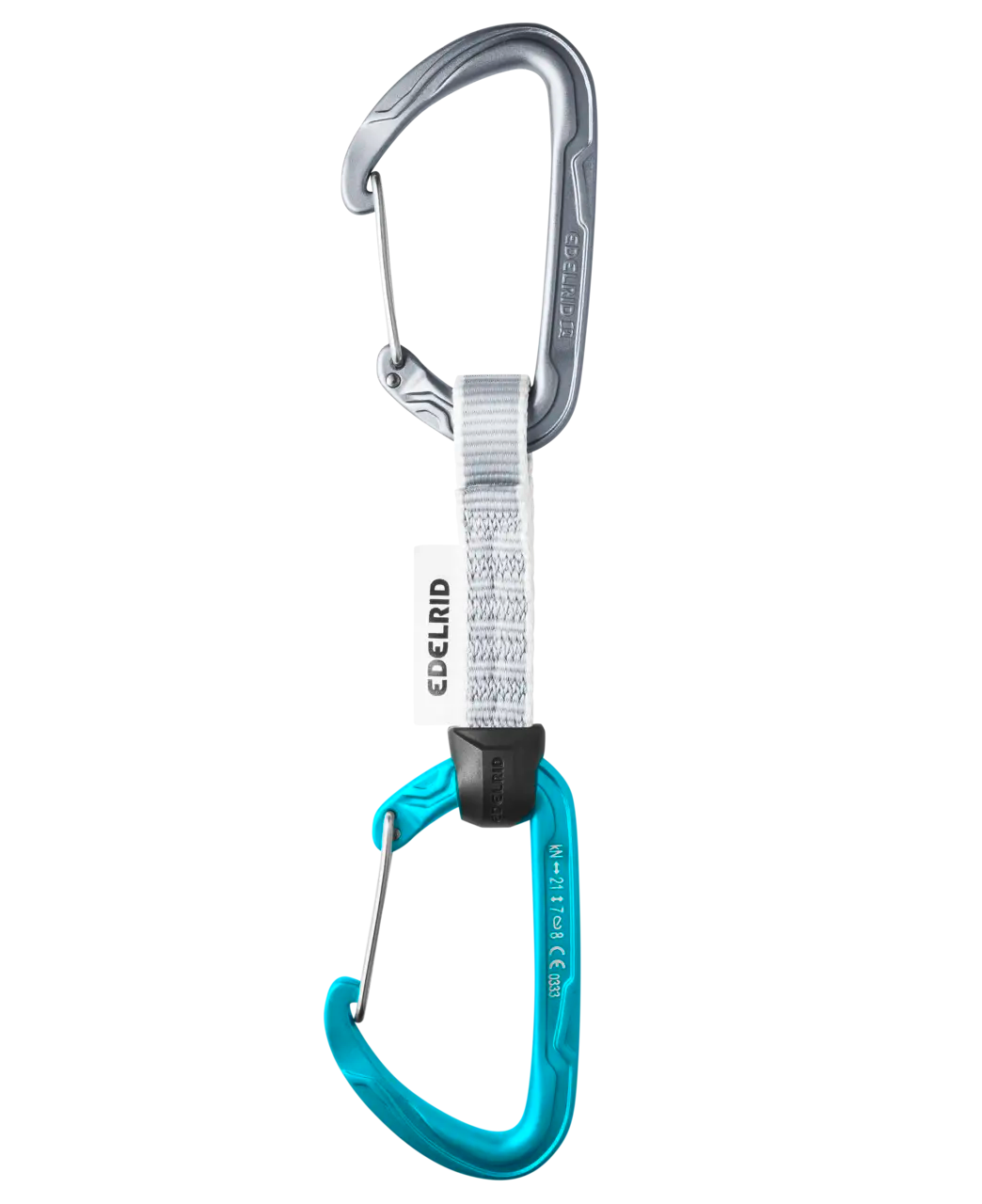

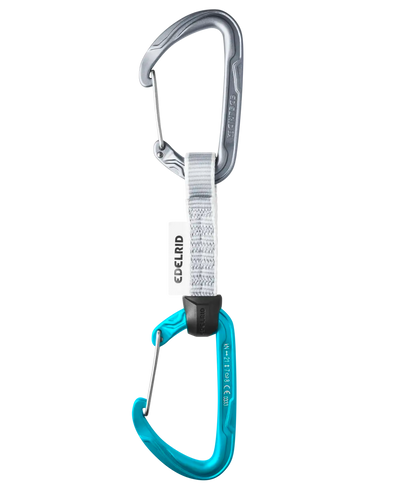

The Edelrid Pure Wire Set Quickdraw is a light, sturdy draw with a wire gate carabiner at both ends, certified to EN 566 and EN 12275. It holds 23 kN on the major axis and opens 24 mm at the gate, which is a generous opening for a wire gate draw.

Features and Benefits

Wire gates are the right call on a draw you buy in quantity. A wire gate weighs less than a solid one and it resists gate flutter, the vibration that can momentarily open a gate during a fall. It also has far less to go wrong when grit gets into the mechanism, which in this climate is not a hypothetical.

Moreover, the lower carabiner is held by an antitwist fixing on the 16 mm polyester sling. That keeps the rope-end carabiner oriented correctly instead of spinning round to a cross-loaded position, which is the single most common way a draw ends up loaded badly.

Additionally, the offset D shape pushes the load toward the spine where the carabiner is strongest, and the 8 kN open gate rating gives a useful margin in the worst case.

Edelrid lists this as personal protective equipment and supplies instructions for use. At 97 mm long it is a standard sport draw length, so it racks tidily alongside whatever you already own.

Product-Specific Use Cases

This Edelrid Pure Wire Set Quickdraw is a sport and trad draw for building a first rack or extending one. Use it on the bolted routes at the Hatta crags and Dibba rock, at the indoor walls across Dubai and Sharjah, and on multi pitch days in Wadi Bih where a dozen light draws beat eight heavy ones.

Technical Specifications

A 23 kN offset D draw on a 16 mm polyester sling.

• Certifications: EN 566 and EN 12275
• Materials: Aluminium and polyester
• Maximum Force Major Axis: 23 kN
• Maximum Force Minor Axis: 8 kN
• Maximum Force Open Gate: 8 kN
• Length: 97 mm (3.8 in)
• Width: 60 mm (2.4 in)
• Gate Opening: 24 mm (0.9 in)
• Sling: 16 mm polyester with antitwist fixing
• Carabiner Shape: Offset D with straight wire gates
