Edelrid Run Down Pulley - Red

Edelrid Run Down Pulley - Red

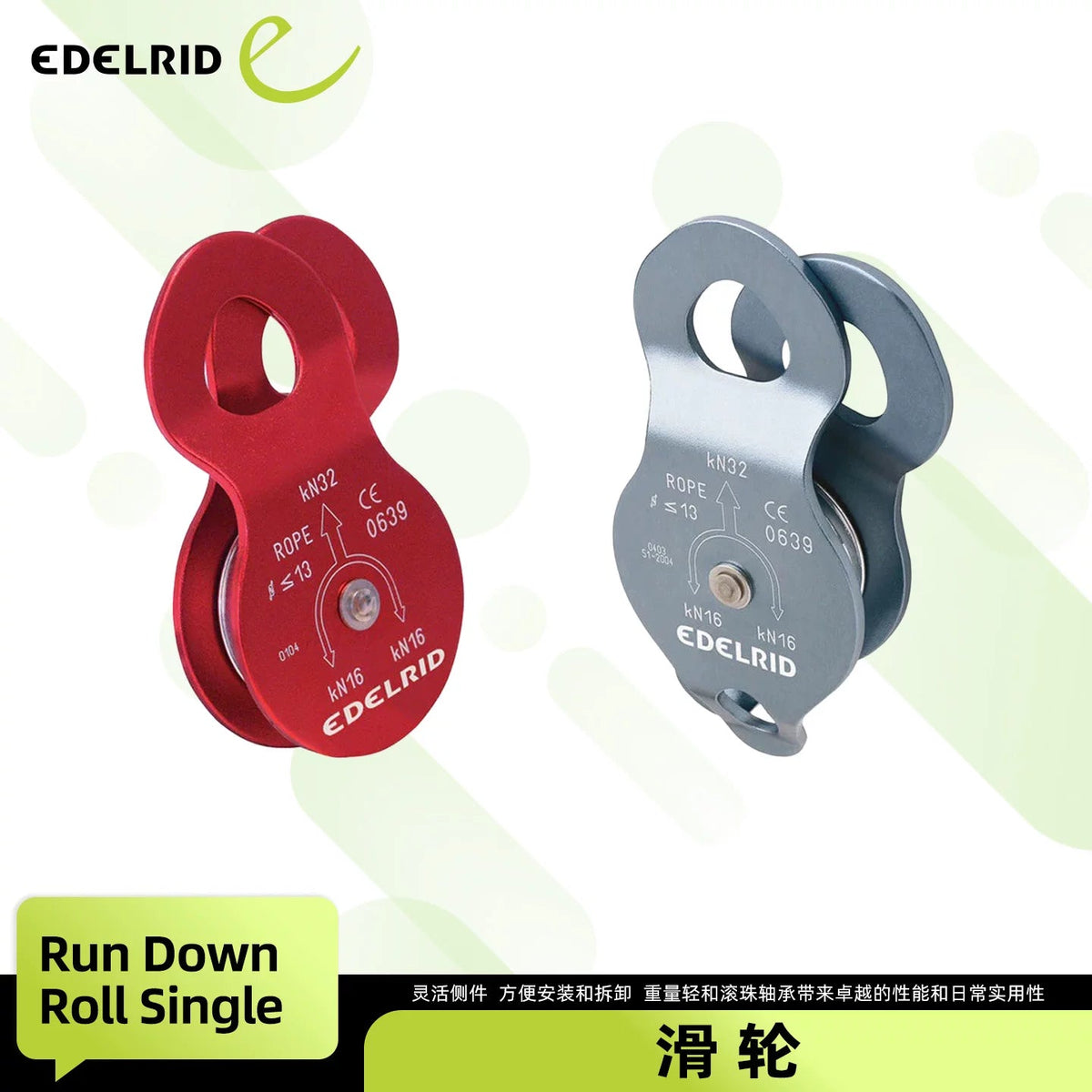

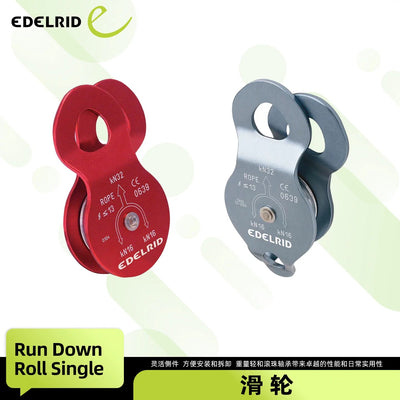

The Edelrid Run Down Pulley - Red is a ball-bearing cable pulley with movable legs, built for lifting heavy loads. It carries a 32 kN load capacity, runs a 50 mm sheave and weighs 200 g (7.1 oz).

Features and Benefits

Sheave size is what separates this from a compact rigging pulley. A 50 mm outer diameter running on ball bearings keeps rope bend radius generous and friction low, so more of what you pull reaches the load instead of being lost in the system. On a long or repeated haul that difference compounds.

Moreover, the movable legs open so the pulley drops onto a rope mid-span. Rigging a lifting line usually means both ends are already committed, and threading is exactly the step you do not want at that point.

Additionally, the longitudinal load capacity is 32 kN, though no EN certification is declared for this item. The aluminium body keeps the whole thing at 200 g despite the larger frame, measuring 124 x 70 x 30 mm.

Product-Specific Use Cases

This is a lifting pulley for materials rather than for people. It suits hoisting equipment to a work platform, tensioning lines and general rigging where the load is heavy enough that efficiency stops being academic. Rope up to 13 mm means it runs thicker static line. Because no EN certification is declared, keep it out of any system that holds a person and use certified hardware there instead.

Technical Specifications

A 32 kN pulley on a 50 mm ball-bearing sheave.

• Load Capacity: 32 kN longitudinal
• Weight: 200 g (7.1 oz)
• Dimensions: 124 x 70 x 30 mm (4.9 x 2.8 x 1.2 in)
• Sheave Diameter: 50 mm outside, 39 mm inside
• Maximum Rope Diameter: 13 mm (0.51 in)
• Sheave Material: Aluminium
• Bearings: Ball bearing
• Certification: None declared in the supplied data
