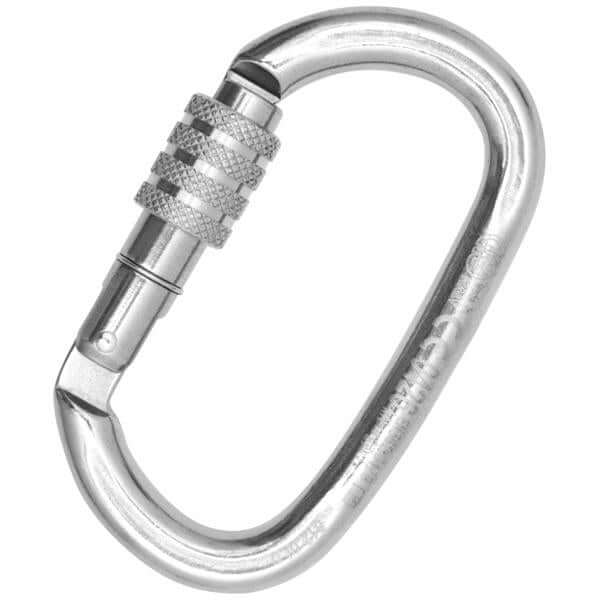

Kong Ovalone Inox Screw Sleeve Oval Carabiner

Kong Ovalone Inox Screw Sleeve Oval Carabiner

The Kong Ovalone Inox Screw Sleeve Oval Carabiner is the manual locking version of Kong's stainless oval. It weighs 215 g (7.6 oz) and is rated to 27 kN on the major axis and 15 kN on the minor. AISI 316 is the grade that survives salt air on a permanent installation.

Features and Benefits

The screw sleeve suits a connector that stays in place. On a fixed anchor or a lifeline termination the carabiner is not being clipped and unclipped all day, and a manual lock that can be inspected visually is easier to sign off than a spring mechanism that has sat in salt air for a year.

Additionally, the published 15 kN minor axis figure is useful information for a connector that will be installed rather than carried. A fixed anchor can load across the gate if the geometry shifts. Knowing the cross-loading number is part of designing that out.

Moreover, the oval body distributes load along the major axis. The Keylock nose removes the snagging tooth from body and gate. The 21 mm (0.8 in) opening takes a structural bar directly. Kong tests every unit individually in Italy.

Product-Specific Use Cases

Permanent installations near the water are where this belongs. It suits lifeline terminations on coastal buildings in Dubai and Abu Dhabi, and marine structures off Fujairah. Think of any anchor left outdoors in salt air for years, rather than carried in and out in a pack.

Technical Specifications

Kong Ovalone Inox Screw Sleeve Oval Carabiner a manual locking AISI 316 stainless oval rated to 27 kN.

• Shape: Oval
• Material: AISI 316 stainless steel
• Standard: EN 362/M
• Major Axis Load: 27 kN
• Minor Axis Load: 15 kN
• Weight: 215 g (7.6 oz)
• Length: 110 mm (4.3 in)
• Width: 62 mm (2.4 in)
• Gate Opening: 21 mm (0.8 in)
• Sleeve: Screw
• Nose: Keylock
