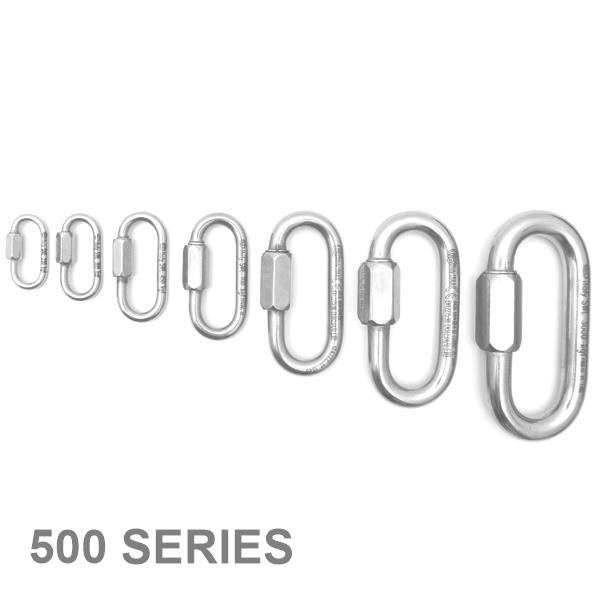

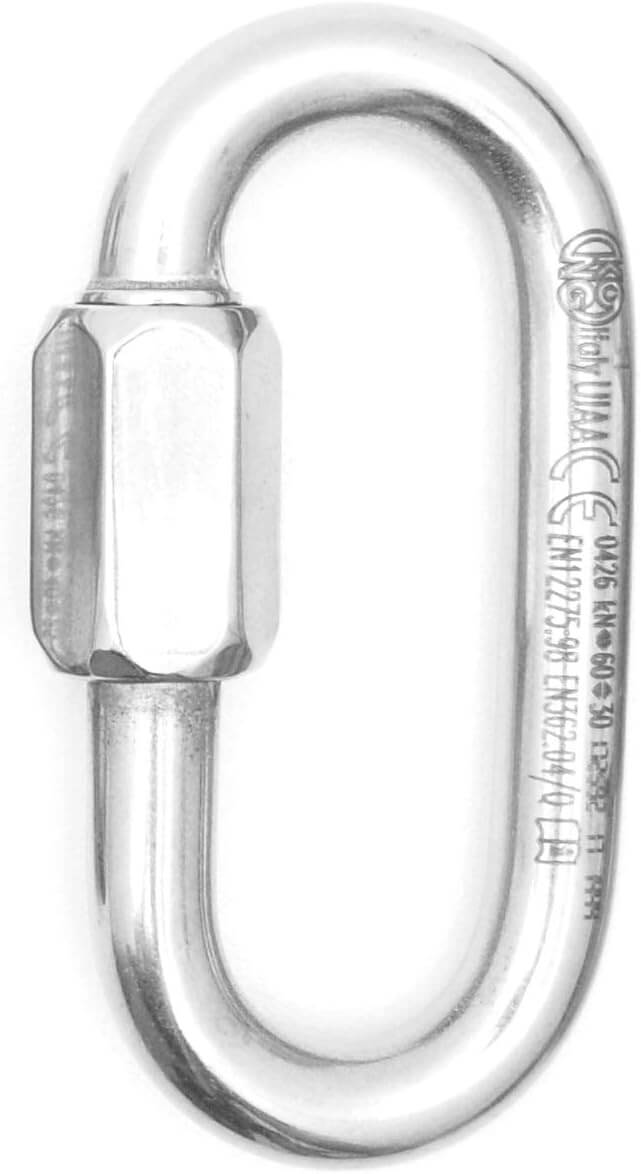

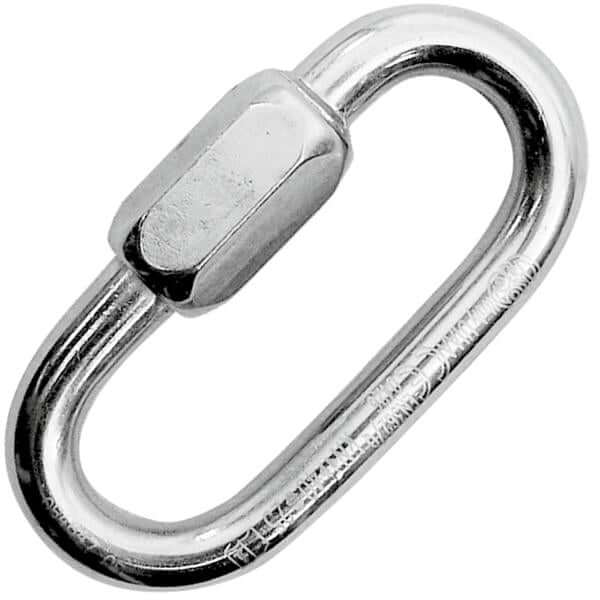

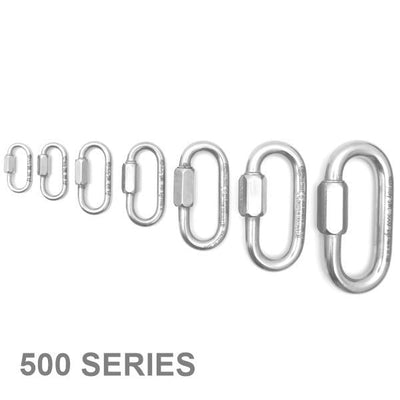

Kong Quick Link Oval Connector

Kong Quick Link Oval Connector

The Kong Quick Link Oval Connector is a screw-closure maillon for connections you set once and leave in place. A carabiner is made to be clipped and unclipped all day. This is made to be tightened with a spanner and forgotten.

Features and Benefits

The threaded sleeve closes the link completely. There is no gate to be pushed open by a sling, a structure or a stray hand. That closed geometry is why quick links are the standard choice for semi-permanent anchors, rigging and retro-fitted hardware.

Additionally, the oval body loads evenly along its long axis. It keeps attached devices sitting square rather than drifting to a corner. Moreover, Kong offers the range in polished carbon steel and in polished 304 stainless. Specify the stainless version where humidity and salt air are part of the working environment.

Product-Specific Use Cases

Use Kong Quick Link Oval Connector for fixed anchor connections, rigging plates and equipment that stays assembled between jobs. Check the certification of the exact size you order. Kong certifies only two references for climbing and personal protective use. The remaining sizes are not certified for human suspension and must not be used for it.

Technical Specifications

A range rather than a single item, so confirm the reference before ordering.

• Materials: Polished carbon steel or polished stainless steel 304
• Closure: Threaded screw sleeve
• Certified References: 500EC0P0PKK and 500IC0P0PKK only, to EN 12275/Q, EN 362/Q, UIAA and EAC
• 500EC0P0PKK: 40 kN major axis, 20 kN minor axis, 79 g (2.8 oz), 74 x 39 mm (2.9 x 1.5 in)
• 500IC0P0PKK: 60 kN major axis, 20 kN minor axis, 142 g (5 oz), 89 x 47 mm (3.5 x 1.9 in)
