Kong Raizer Rope Rescue Winch

Kong Raizer Rope Rescue Winch

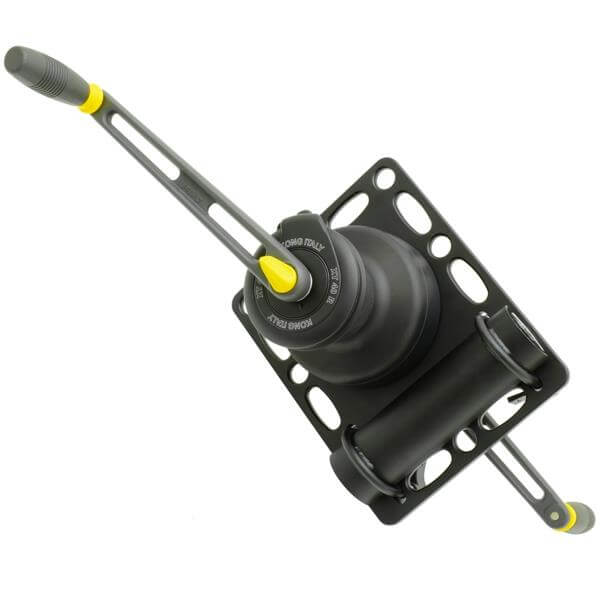

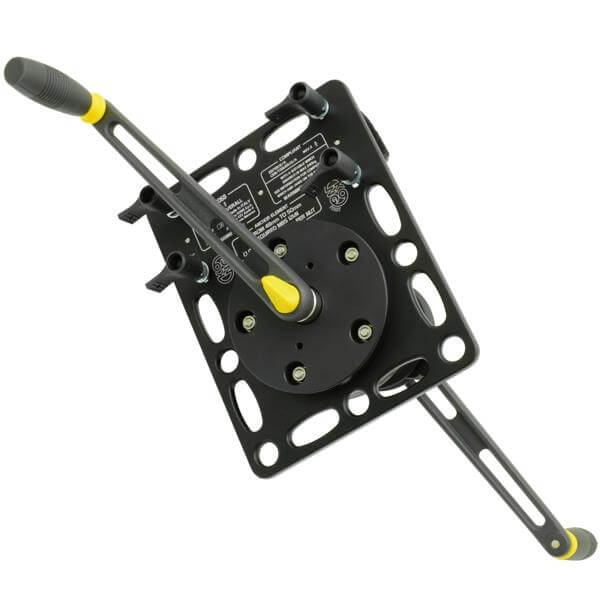

The Kong Raizer Rope Rescue Winch is a 7.3 kg geared winch. It clamps to a tripod or pole to raise and lower people and loads on rope. Two selectable gear ratios let one machine handle both speed and power.

Features and Benefits

The two gear ratios are 12.8 to 1 and 40 to 1. The faster ratio takes up slack and moves an unloaded line. The 40 to 1 setting handles the loaded lift. An operator is not fighting the gearing at either end of the job.

Additionally, a stainless steel mobile jaw grips rope from 6 mm to 12 mm, static, semi-static or dynamic. The winch works with the ropes a team already holds. Moreover, the unit is serviceable with an unlimited lifetime, so it is a capital item rather than a consumable.

Product-Specific Use Cases

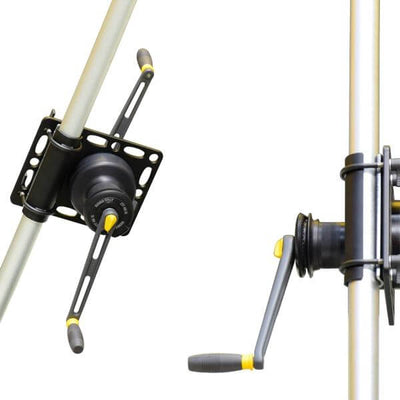

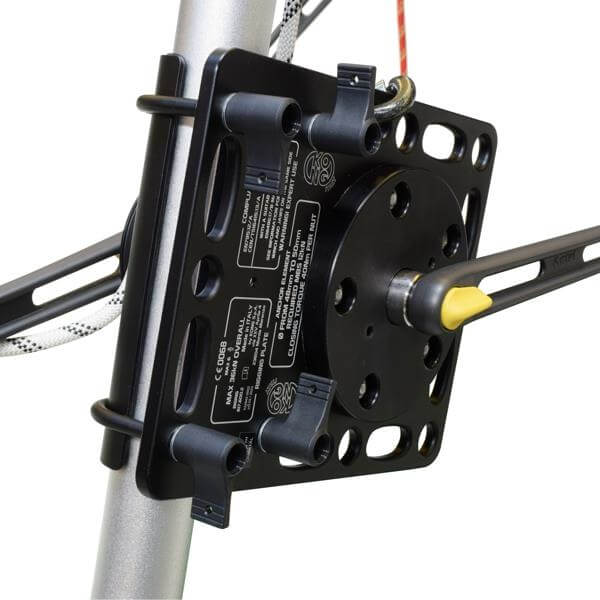

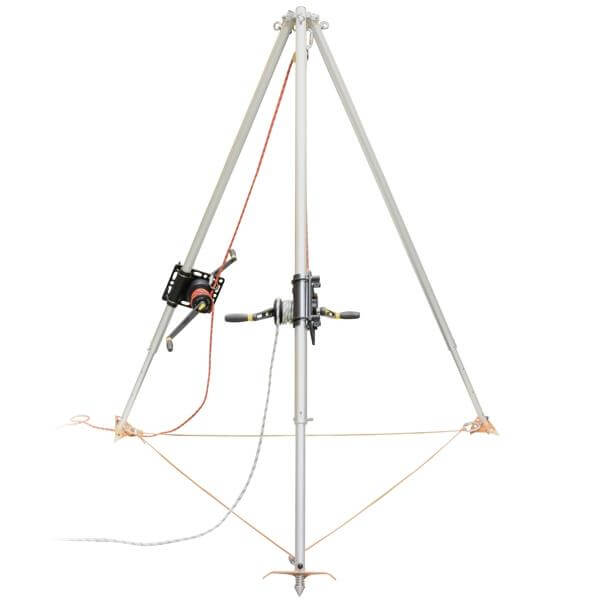

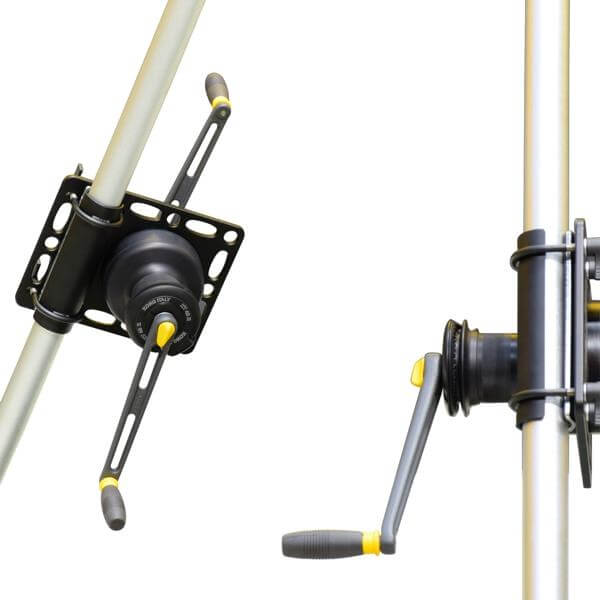

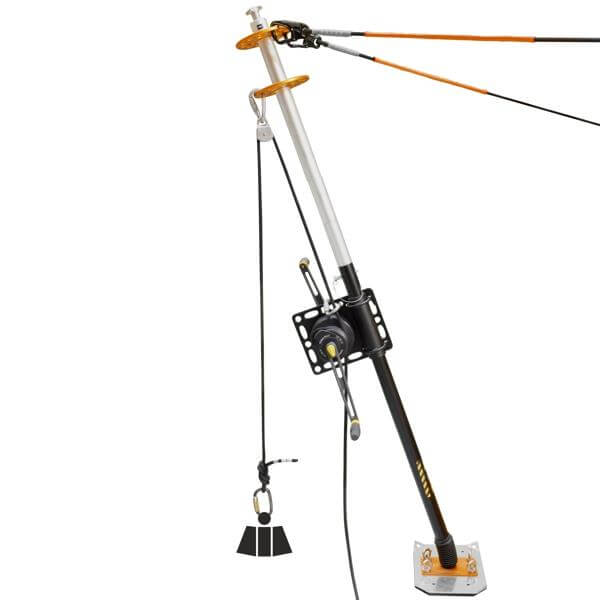

This Kong Raizer Rope Rescue Winch is used for confined space entry and retrieval, and for shaft and vessel work. It is also used for technical rescue, where a casualty has to be raised under control. It fits tube diameters of 48 mm to 50 mm, extending to 60 mm with a separate adapter. It mounts to standard tripods and davit poles.

Technical Specifications

Certified across four references, with load limits that change by mount.

• Standards: EN 1496/B, CEN/TS 16415, EN 795:2012/A, RfU PPE-R/11.114
• Materials: Aluminium alloy and steel, stainless steel mobile jaw

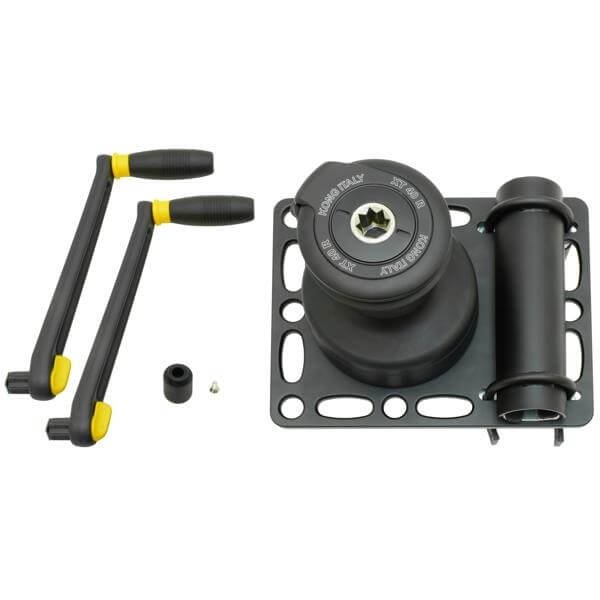

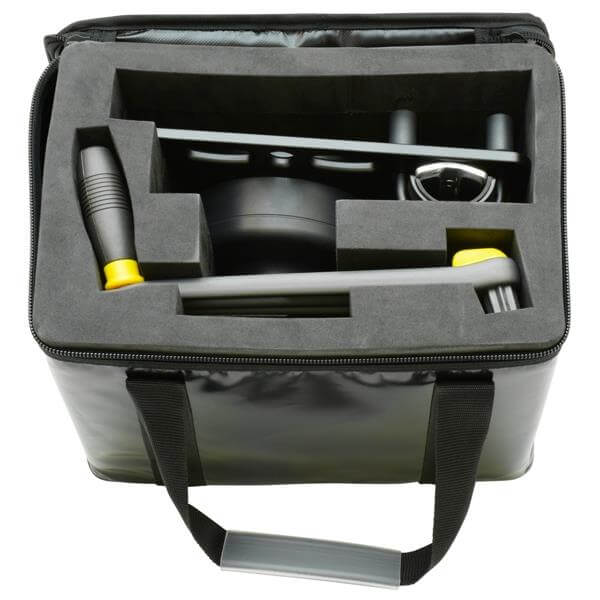

• Weight: 7.3 kg (16.1 lb) unit, 9 kg (19.8 lb) full kit
• Maximum Load: 240 kg (529 lb), reduced to 150 kg (331 lb) on the Tripode Base
• Rope Diameter: 6 to 12 mm, static, semi-static or dynamic
• Gear Ratios: 12.8 to 1 and 40 to 1

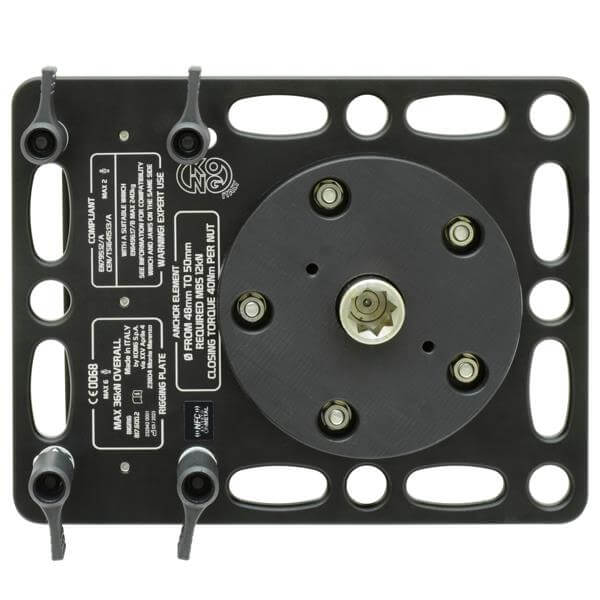

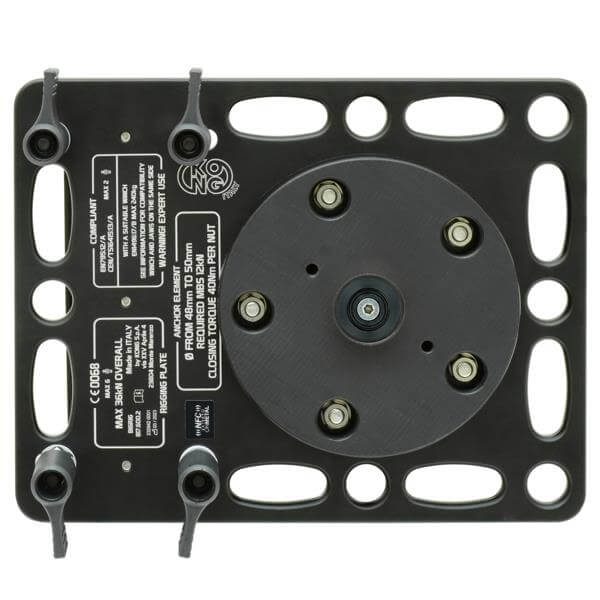

• Mounting: Tube 48 to 50 mm, or 60 mm with the Raizer Adapter
• Lifetime: Unlimited, serviceable
